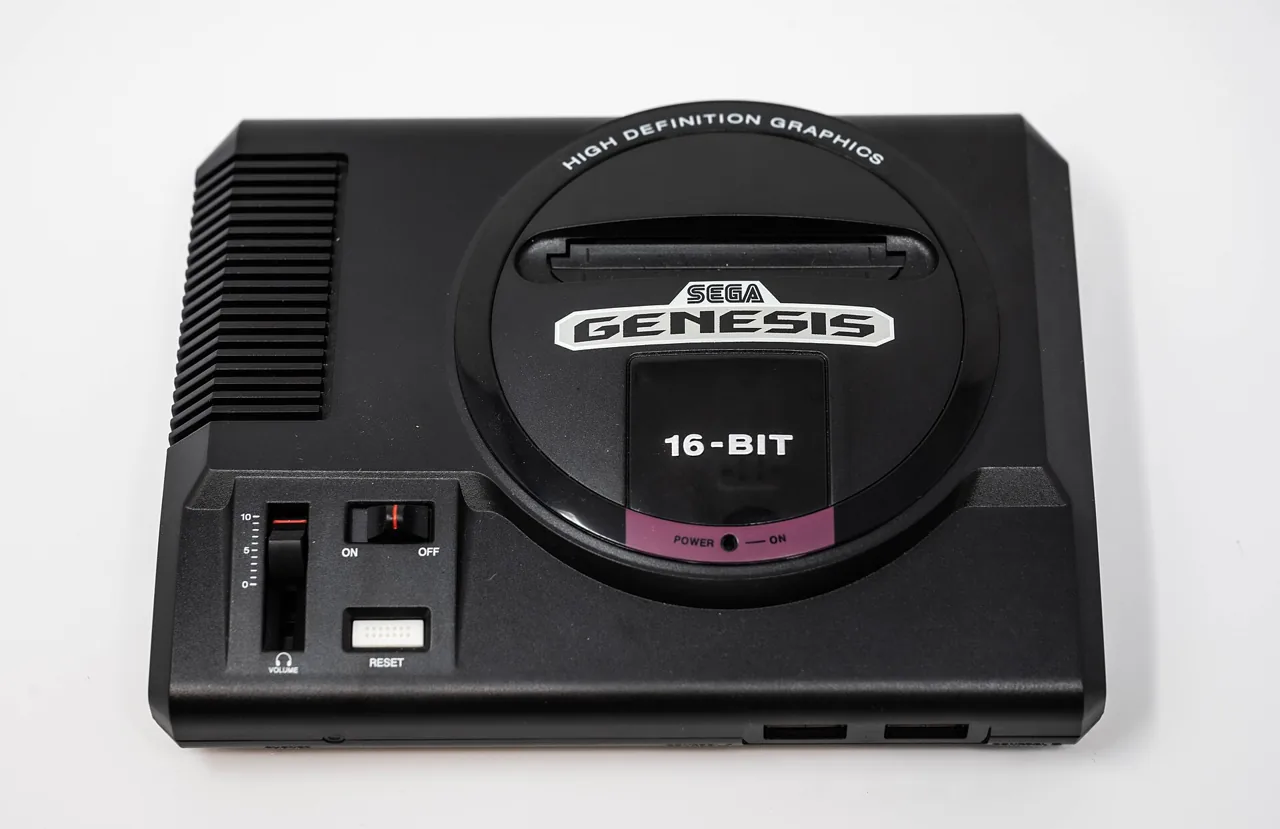

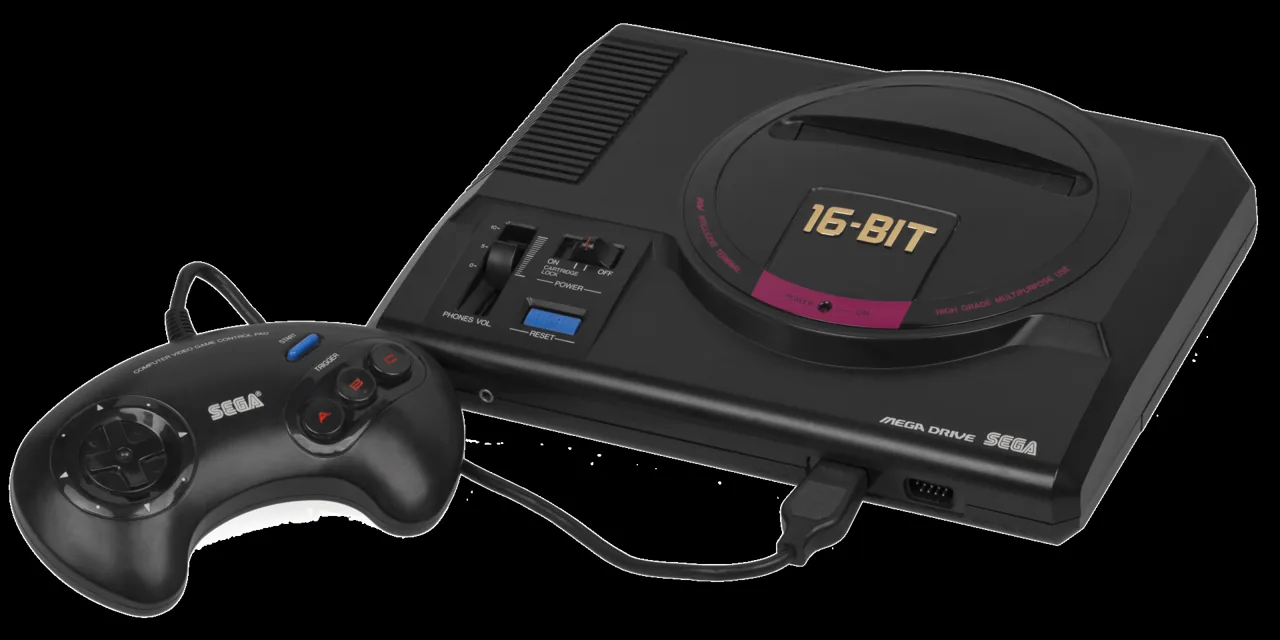

Sega Mega Drive

Sega's 16-bit console that arrived in European living rooms with a Motorola 68000 at its core, a dedicated Z80 for sound, and enough sprite muscle to make arcade ports feel honest.

Architecture

The Mega Drive's processor story is straightforward and honest: a Motorola 68000 running at 8 MHz, paired with 64K of processor RAM and 64K of video RAM.⁷ The clock rate drew comparisons to the Amiga at the time, and the comparison was fair. The 68000 family was the workhorse of 16-bit computing on both sides of the games/computer divide. What set the Mega Drive apart from those home computers was that its video hardware carried much of the display workload independently, leaving the 68000 free for game logic rather than pixel-pushing.⁷

The sprite chip is where the hardware earns its keep. Up to 128 sprites on screen, with a maximum of 32 on any single scanline, plus two independent playfields for parallax scrolling effects.⁷ Two playfields sounds modest; in practice it meant that fast side-scrollers and "panels" (those status bars and cockpit overlays) could be composited without eating into CPU time. Large bosses and polygon-adjacent effects were also manageable because the screen, while not directly addressable by the CPU as on the Amiga or Atari ST, could still be updated across wide areas efficiently.⁷

Sound gets its own processor entirely: a Zilog Z80a, the same chip that ran a ZX Spectrum, dedicated wholly to audio and music generation.⁷ This was an arcade-derived approach, not a home-computer compromise, and it shows in how cleanly the sound system operated without competing for the main CPU's cycles.

The Mega-CD Expansion

Sega's CD-ROM add-on for the Mega Drive addressed a genuine problem with the medium. CD-ROM's raw data transfer rate is a slow 150K per second, which causes the loading pauses that plagued early optical disc games.⁷ Sega's engineering solution was to embed a second 68000 CPU and its own RAM directly inside the Mega-CD unit. The Mega Drive could issue a prefetch request to the Mega-CD while running the game; by the time the data was needed, it would be staged in the add-on's internal memory and could be transferred to the console at speed through a 68000-to-68000 link.⁷⁸ This was a clever piece of system design, though it added cost and complexity that a cartridge machine never needed.

The relationship between the base console and the Mega-CD later served as the conceptual template for Sega's thinking around the Saturn era. A standalone cartridge console that could be optionally upgraded with a CD drive was explored as the "Jupiter" project, explicitly modelled on the Mega Drive / Mega-CD arrangement.² The Jupiter was never released, but the lineage shows how formative the Mega Drive's expandable architecture was to Sega's internal planning.

Developers burning Mega-CD software worked with Sega-specified media: a dedicated Sega MEGA CD-R 1.25 m/s disc (blue-labelled, carrying the Sega logo), distinct from the Saturn's own CD-R media. The Mega CD-R was not rated for quadruple-speed write operations.¹⁵

Hardware Variants & Collectibility

By the early 2000s the Mega Drive had settled into the second-hand market in volume. Standard PAL and US units traded for £15–£30 in good boxed condition, and Japanese models commanded £35–£60, reflecting the premium the Japanese market always carried for collectors.¹ The Mega Drive 2, Sega's revised and physically smaller hardware revision, tracked similar prices to the original.¹

The most practically interesting variant is the Hong Kong model. Gold-labelled, it plays Japanese, UK, and US Genesis cartridges on a UK television without modification or adaptors — a regional lock-pick built into the hardware at the factory. Its 2003 collector value of £40–£50 sat above the standard Japanese model, which required more effort to use outside Japan.¹

At the other end of the scale, Japanese-only late releases command serious premiums. The Ooze, released in Japan in late 1995 in very small numbers, is one example: the Japanese version was valued at £250 or more, while PAL and US NTSC copies were described as essentially worthless to collectors.¹ A similar situation applied to a Toaplan/Tengen arcade title with a documented print run of only 2,000 copies. Legal disputes with Sega resulted in many copies being pulled, making it among the rarest Mega Drive software.¹ All Tengen software for the Mega Drive is considered scarce.¹

Software & Market Presence

By early 1991, German classified pages were dense with Mega Drive trading ads, with users exchanging cartridges, hunting Japanese imports, and selling hardware. This was evidence of a healthy grey-market ecosystem well before official distribution caught up.³ By 1991 a PAL bundle with one game was advertised at 399 through German retailers, with Japanese import games fetching 99 each.¹⁰ UK grey-market importers were offering the console at $129 bundled with Mickey Mouse, an AC adaptor, a joypad, and a TV or SCART cable, a price point that undercut official channels significantly at the time.¹⁴

The Mega Drive was consistently listed alongside the Game Boy, NES, and Super NES as one of the four best-selling gaming platforms in Germany by mid-1993, a ranking that shaped publishers' porting decisions.⁵⁹ German retail pricing for cartridges in late 1993 ranged from around 69 for titles like Rocket Knight to 149 for Street Fighter and Eternal Champions, with the Mega Drive 2 hardware available solo at 209.¹¹ UK retail during the same period saw major titles listed at £44.99–£59.99.⁴

The 32X add-on and the Mega-CD both extended the hardware's commercial life into the mid-1990s, and Sega continued doing internal game development for the Mega Drive platform alongside the Mega-CD, 32X, Saturn, and Dreamcast.² Development tools for the era supported the MegaDrive/Genesis as one of several simultaneous targets alongside platforms including the SNES, Amiga, Sony PlayStation, and Sega 32X.¹⁶

The Archivist's Take

The Mega Drive was a machine that trusted its hardware. A real 68000, a dedicated audio processor, and sprite counts that held up against arcade originals: these were not marketing numbers. The architecture was essentially the same proposition as a mid-1980s arcade board, which is precisely why ports from that era felt so convincing on it. The Mega-CD's dual-CPU prefetch design shows the same engineering honesty. Someone identified the actual bottleneck and addressed it directly, rather than papering over it.

The collectibility data from 2003 tells the real story of how the platform aged: ubiquitous enough to fill every cash converter in Europe, yet with a genuine collector tier at the Japanese end where rarity and legal trouble conspired to make certain cartridges genuinely hard to find. A 2,000-copy print run pulled mid-production is not a curiosity; it is the kind of specific, documentable scarcity that drives serious collectors. The hardware itself has long since stopped being the point. It is the software archaeology that keeps the Mega Drive interesting.
